Wide range of application

Innovative design for HF100 multi-gas incubator

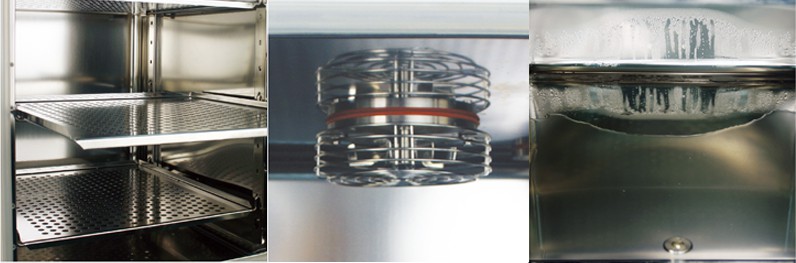

• Stainless steel chamber with easy-to-clean coved corners reduces contamination-prone surface
• The turbulence-free chamber ventilation improves CO2, O2, humidity and temperature uniformity
• Innovative design of water reservoir replacing water tray, allows rapid revovery of opimal humidity

Temperature control

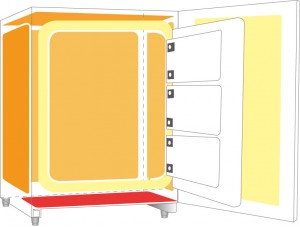

• Direct heating enables rapid temperature recovery while air jacket provides isolation against ambient temperature fluctuations
• PT1000 temperature sensor ensures stable temperature control with little gradient and prompt temperature recovery without overheat
• Three temperature control settings (main heater, outer door and overheat protection)minimize condensation and yield precise temperature uniformity.

Precise CO2 control and immediate recovery

• Drift free IR CO2 sensor responds extremely fast to gas concentration changes

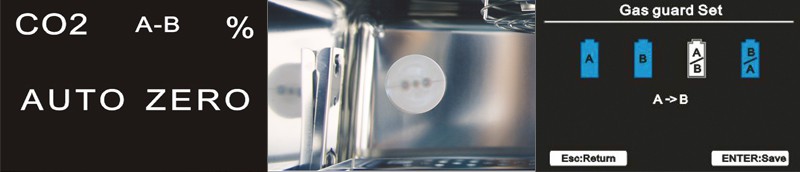

• Auto-zero runs automatically to recover the indicator to 'zero' every 24 hours
• HEPA filter of CO2 inlet port can remove impurities and contaminants with efficiency 99.998% @0.2um
• Standard CO2 cylinder auto changer alerts users and ensures continuous CO2 supply

O2 control

• Maintenance-free zirconuim oxide sensor - long life, good linearity and high precision
• Oxide sensor is calibrated automatically (auto-cal) and stays in the incubator during the 90℃ decontamination routine
• Well designed O2/N2 inlet module improves humidity stability in chamber

Constant humidity

• Larger water surface area provide by water reservoir with inclined and rounded corners
• A new water level alarm(audible and visible) alerts users when the water reservoir needs to be refilled
• Standard humidity sensor ensures a constant high level of humidity to prevent cultures from drying out

User friendly interface

• Microprocessor with soft-touch control panel for optimum operation
• Large-size TFT-LCD display for temperature, CO2, O2 concentration and RH
• Comprehensive visual and audio alarms for all parameters
• Diagnostic interface provide comprehensive solutions to frequently encountered problems
• RS232 port standard for communication and external instrument logging

Contamination prevention

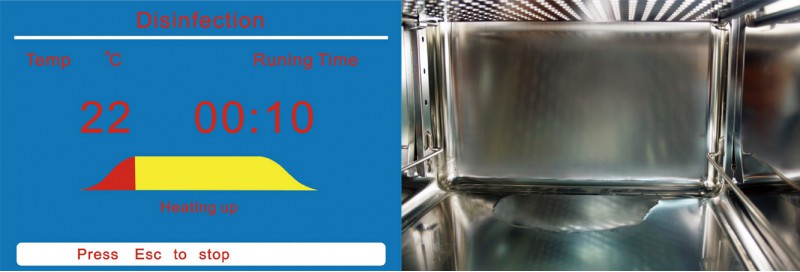

• 90℃ disinfection routine decontaminates the entire interior of the chamber while causes less damage to electronic components
• In independent tests, a routine disinfection circle is proven to completely eliminate a variety of contaminants including mycoplasma
• A completely smooth inner casing with rounded corner reduces the possibility of hidden contamination
• Easy-removable, replaceable shelves make chamber cleaning a rapid and efficient process
